Detailed description
Speed, Safety & Power

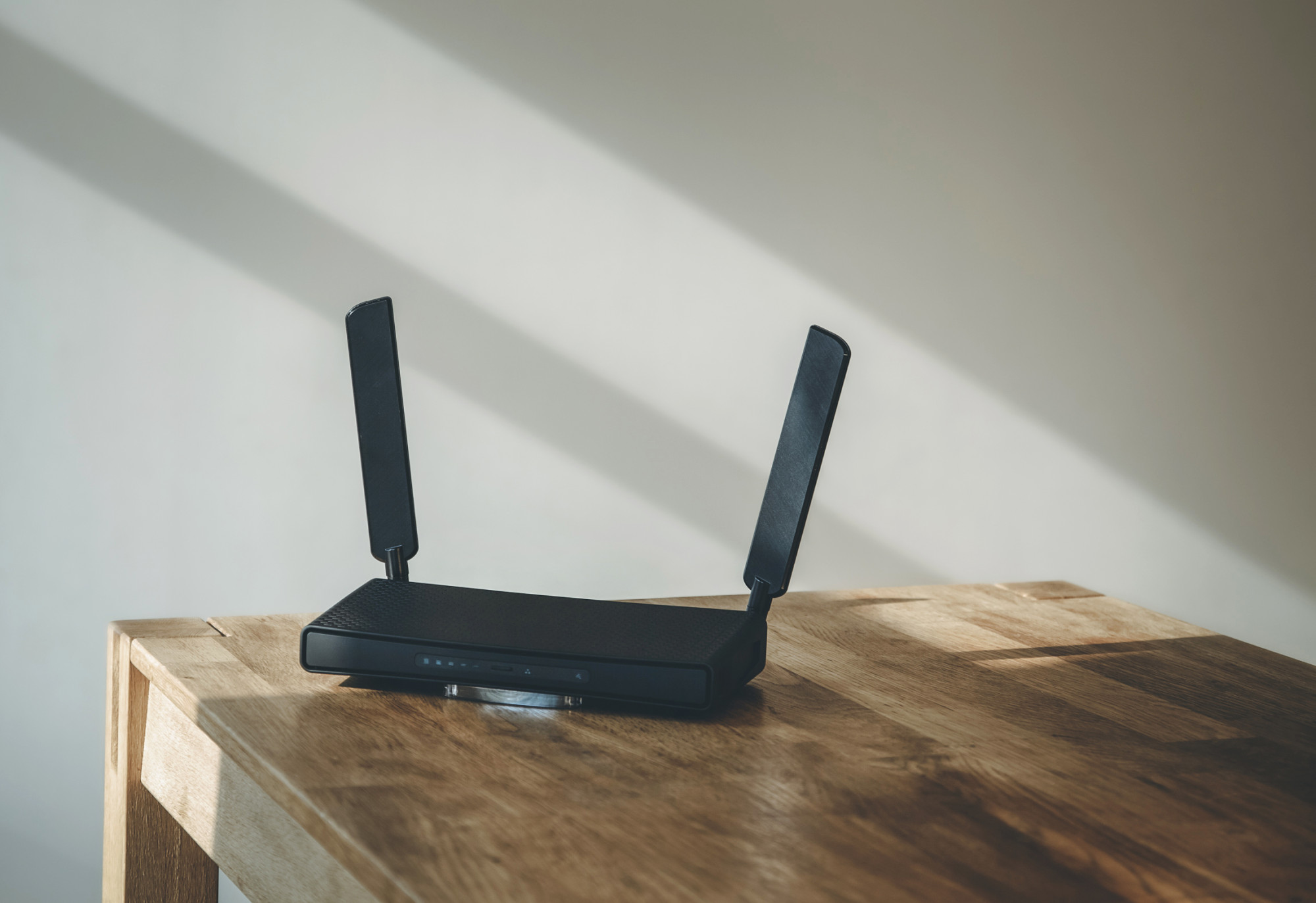

The Mikrotik hAP ax3 – a Wi-Fi 6 Router – is so far the most powerful device from Mikrotik’s wireless AX series. Combining potent external antennas, a modern quad-core ARM CPU and many other features, the hAP ax3 increases the connection speed up to 40% in the 5GHz spectrum, and up to 90% n the 2.4 GHz spectrum. There are three main strengths of the hAP ax3 Wi-Fi 6 Router: speed, safety and power.
Ultimate Power
Featuring a quad-core ARM CPU running at 1.8 GHz and 1 GB of Random-Access Memory – as well as Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, and multiple VPN tunnels – this device gives an opportunity for comfortable browsing, streaming, and most other tasks.
New Safety Levels
This router is designed to be safer on many levels. First of all, Mikrotik’s collaboration with EU lawmakers ensures full compliance with all the necessary safety policies. Also, unprecedented software security is supported by the latest RouterOS v7 updates and WPA3 advanced encryption.
New Possibilities

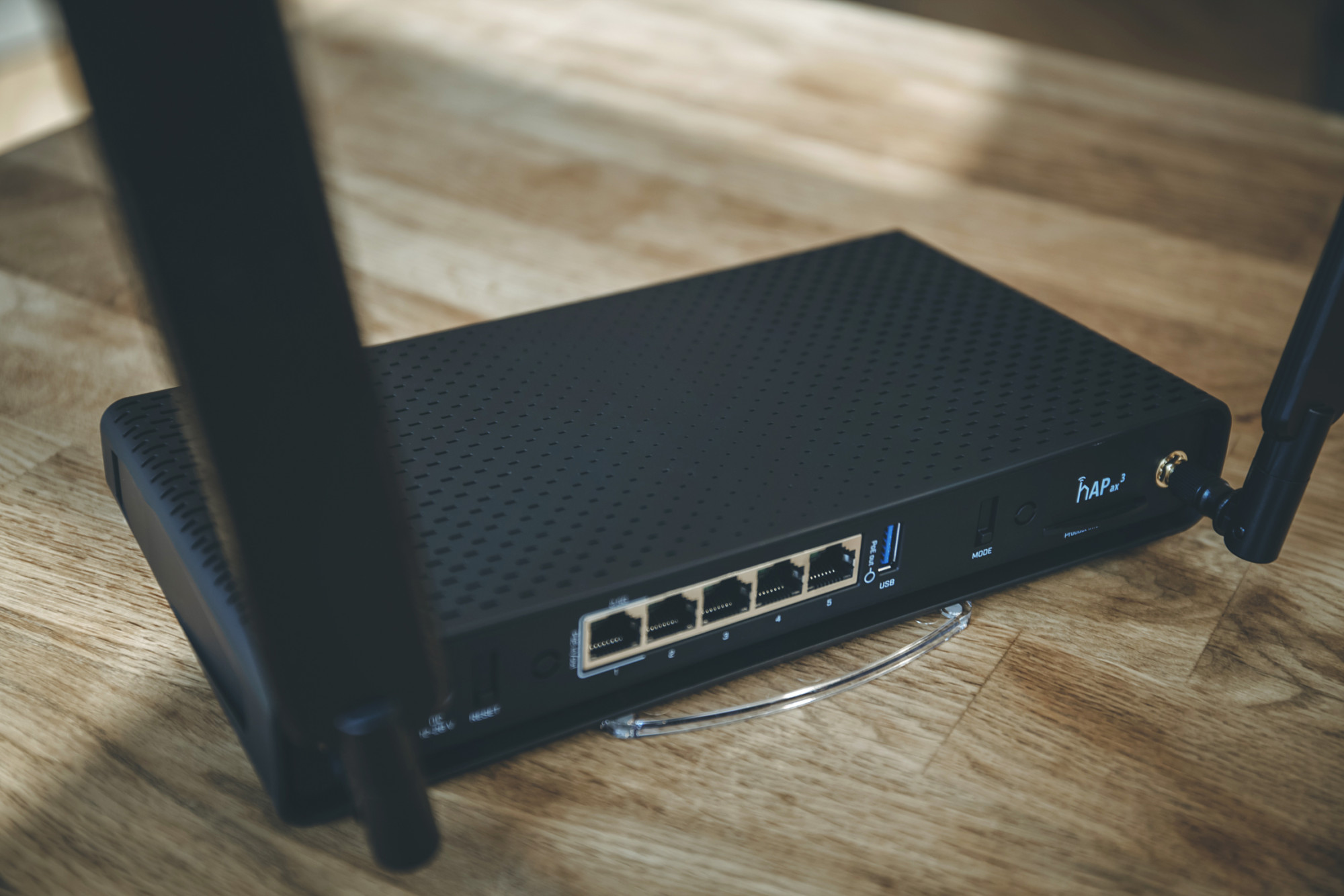

The combination of 4 Gigabit Ethernet ports, dual-band dual-chain wireless, 1.8 GHz ARM CPU and other features provide countless possibilities for tasks that were previously impossible due to a lack of speed or limitations regarding software. With the hAP ax3, Mikrotik makes a contribution to a great expansion of one’s capabilities.
Specifications
Wireless Network
Standards
802.11a/b/g/n/ac/ax, Wi-Fi 6
MIMO
2.4GHz 2×2, 5GHz 2×2
2.4GHz Radio Rate
573Mbps
5GHz Radio Rate
1.2Gbps
Antenna
Antenna Design
Omni
Wireless Antenna Frequency Range & Gain
2.4 – 2.4 (GHz) 3.3 (dBi), 5 – 5 (GHz) 5.5 (dBi)
Connectors
RF Connectors
(2) RP-SMA Female
Interfaces
RJ45 Ports
(4) 1 Gbps, (1) 2.5 Gbps
Number of PoE Ports
1 pcs
PoE Out Standards
Passive PoE
USB Ports
(1) USB-A 3.0
Management
Ethernet
System Specification
Chipset
Quad-Core IPQ-6010 1.8 GHz
RAM
1 GB
Storage Memory
128 MB
Power
Power Method
AC/DC Adapter, 24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
12 – 28 V DC
Max Power Consumption
15 W
Power Connector
DC Plug 2.1 x 5.5 mm
PSU / POE adapter
24 V DC 1.5 A
Physical Parameters
Color
Black
Dimensions
251 x 130 x 39 mm
Operating Temperature
-40 °C to 70 °C
Environment
Indoor
Form Factor
Desktop
Mounting Method
Wall Mount, Tabletop
Package Contains
External Power Supply
Included
Software
MikroTik
RouterOS Level 6
